8-CH ETHERNET & POE OVER COAX
HIGHWIRE Powerstar Base 8
VHW-HWPS-B8
| Re-use existing coax currently used for analogue cameras.
| Replace typical 4-channel video encoders with a full IP system.
| Reliably power new IP cameras with POE over coax.
| Fully automatic installation - no set-up of EOC adaptor required.
| Simple fast, cost-effective installation, less time on site.
| Compatible with HIGHWIRE Powerstar Camera EOC adaptors.
| Gigabit Ethernet network uplink and optional SFP port.
8-ch base adaptor for fast Ethernet and POE over legacy cabling
HIGHWIRE Powerstar Base 8 is a high-density solution for Ethernet and POE over coax. Four Base 8 units provide 32 IP channels in 1U, with space for an optional rear-mounted 1U power supply, ensuring up to 30W POE per channel output. An integrated GigE switch saves on main network switch ports.
Eight Channels, One Box

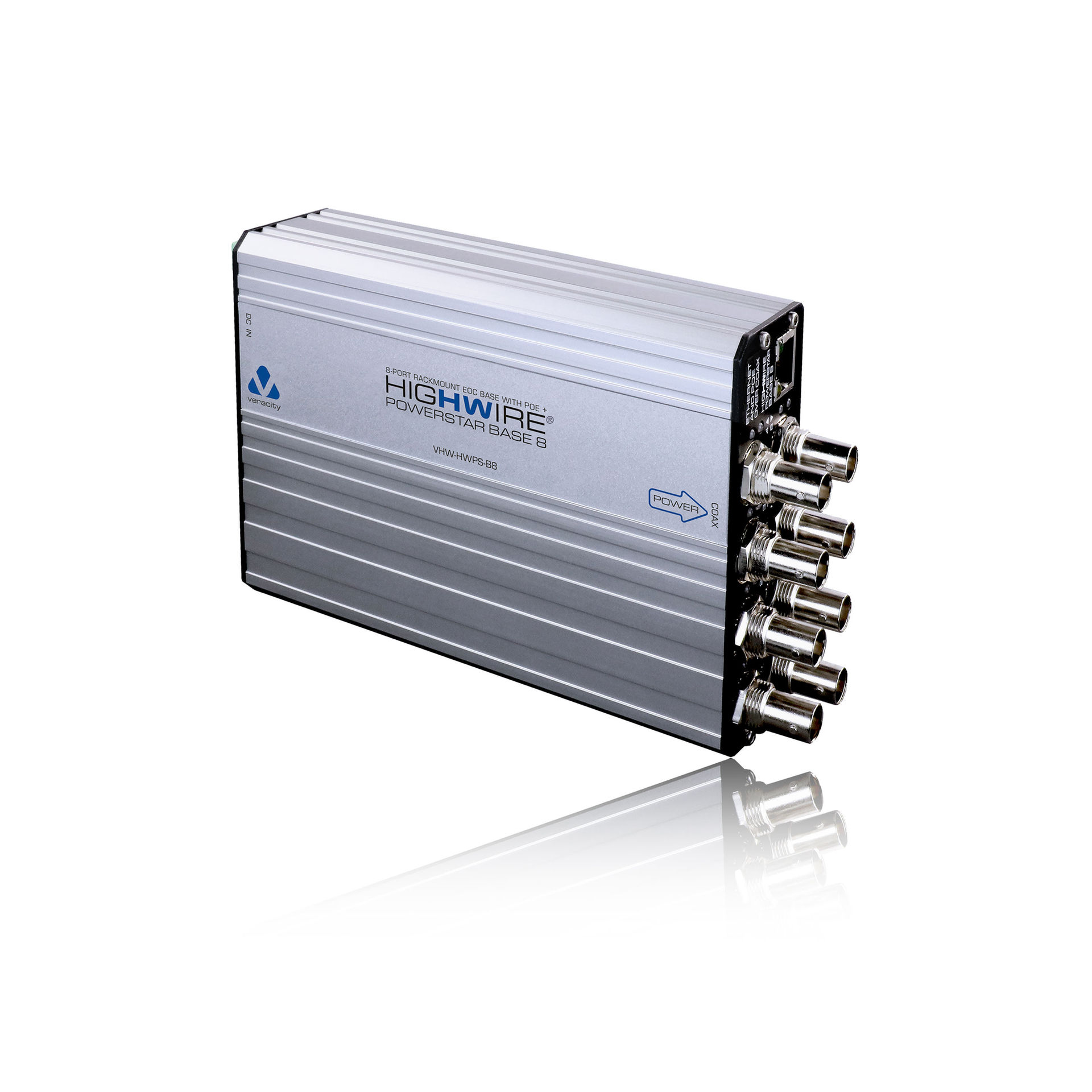

HIGHWIRE Powerstar Base 8
HIGHWIRE Powerstar Base 8 is powered by a 57V DC PSU and delivers Ethernet, POE and Hi-POE over legacy coax, for maximum reliability and with minimal recabling. Each channel connects to a HIGHWIRE Powerstar (Camera), Duo or Quad unit.
APPLICATION DIAGRAM
8-Ch Ethernet and POE over legacy coaxial cabling
Compatible Products for...
HIGHWIRE Powerstar Base 8
A list of associated compatible products is shown below. Where the same product is listed, this means they can be used in pairs. To find out more about any listed product, use the button to return to IP Transmission Products and select the required item
HIGHWIRE
HIGHWIRE Powerstar (Camera)
HIGHWIRE Powerstar Duo
HIGHWIRE Powerstar Quad
Customers | Products
A few sites to give a flavour of the sites we protect. See References and Applications for more detailed info.
LAX Los Angeles International Airport | HIGHWIRE
Analogue Camera Replacement
Federal Aviation Authority | TIMENET
Time Synchronisation
Ceylon Electricity Board | LONGSPAN
Long Distance Ethernet
DIMENSIONAL DRAWINGS
Click to download the Dimensional Drawings Sheet to aid device installation.
2.1MB
